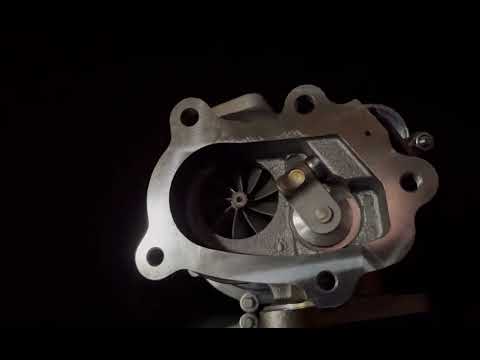

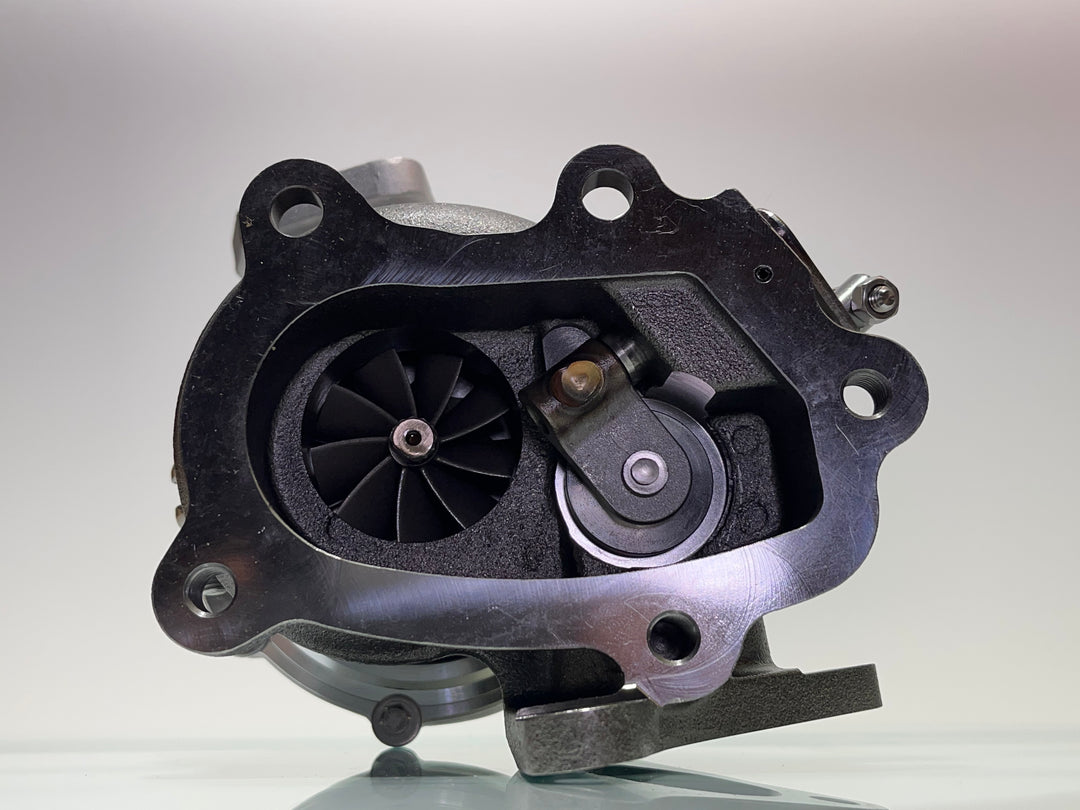

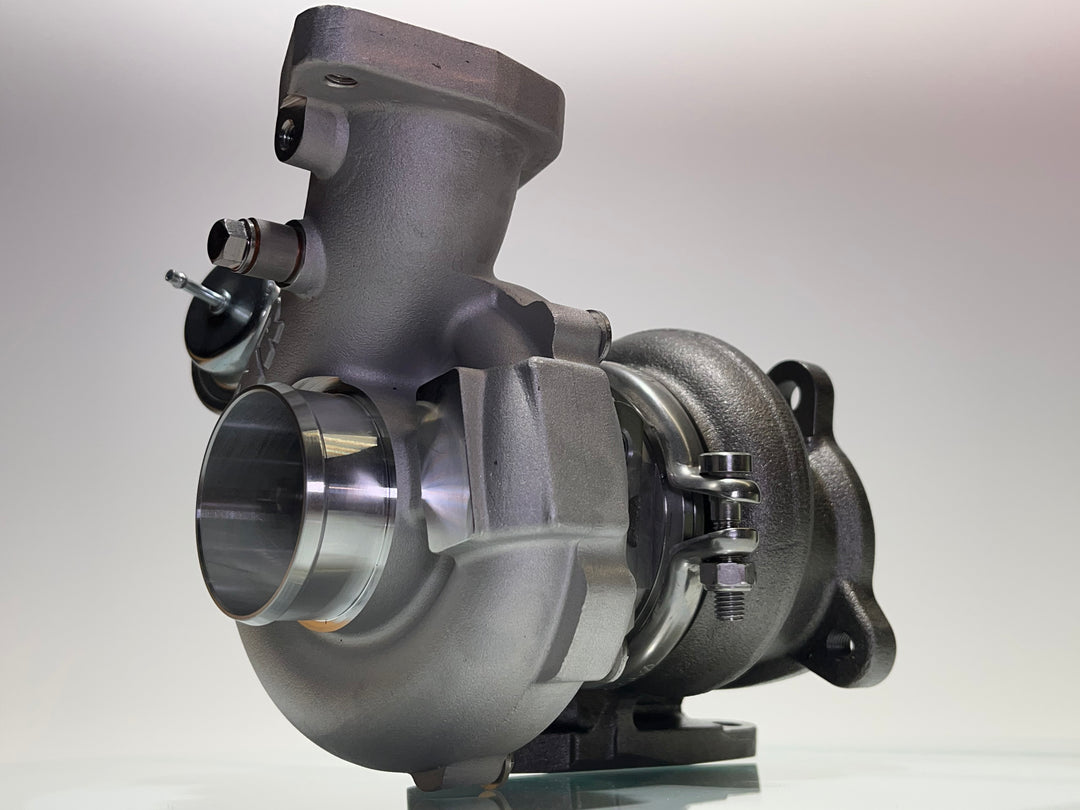

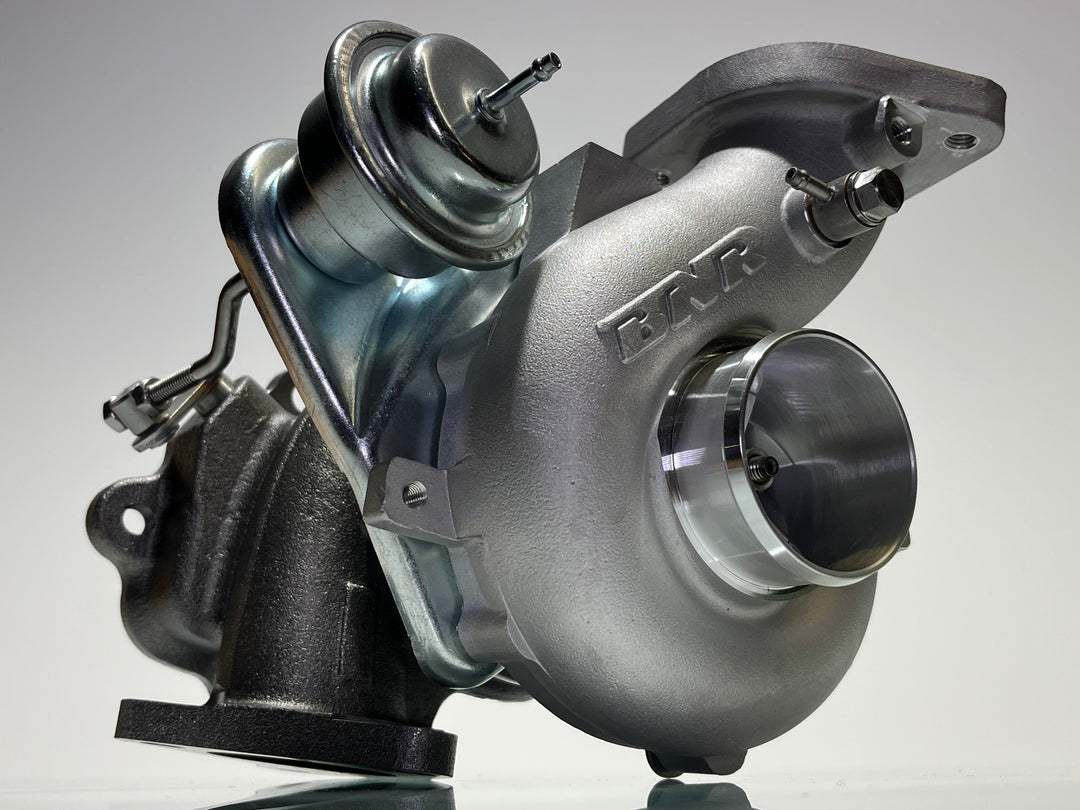

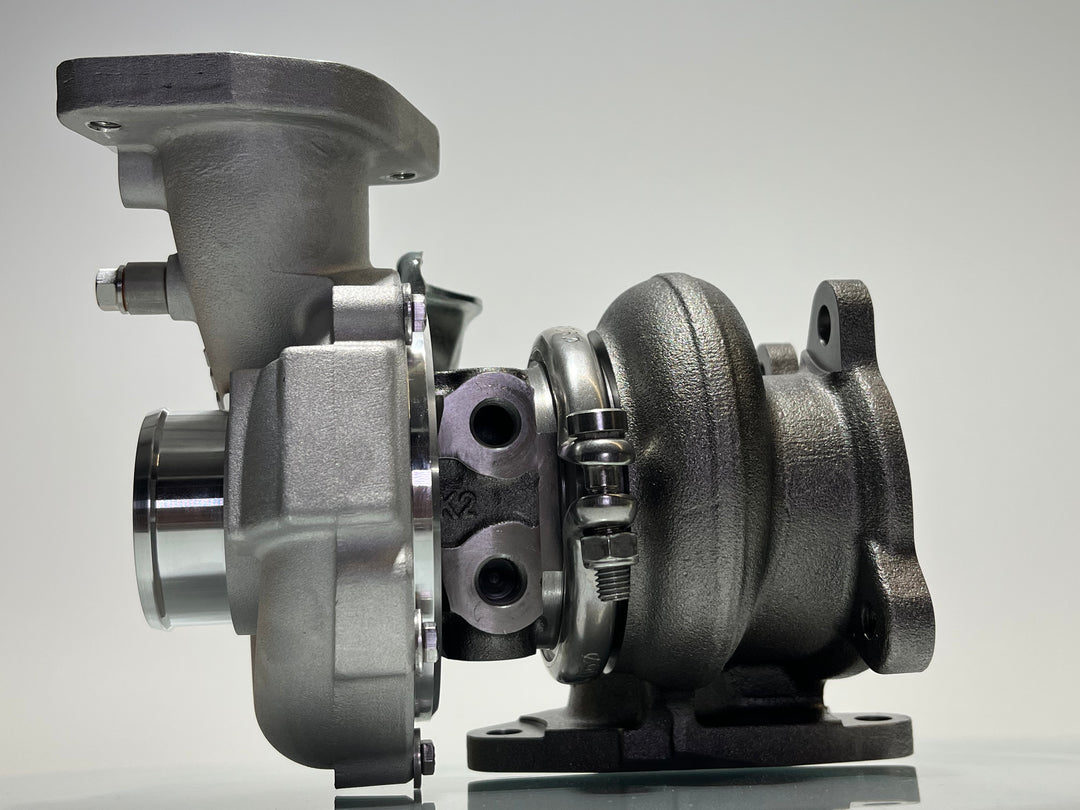

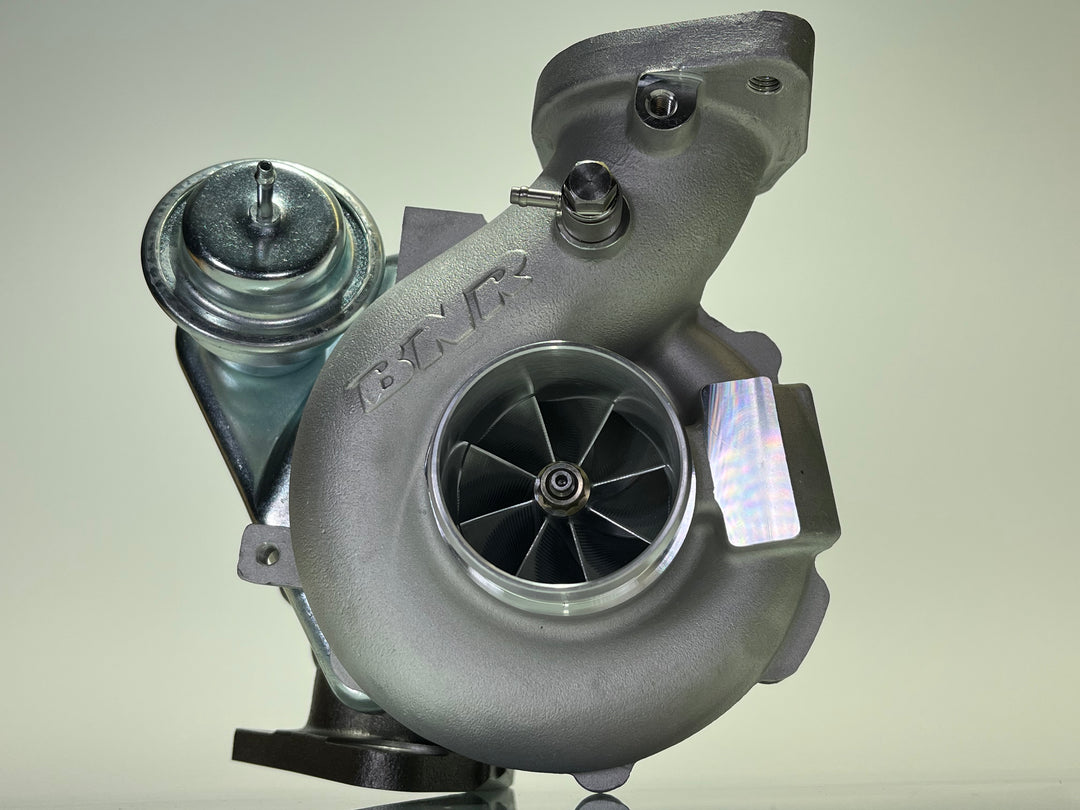

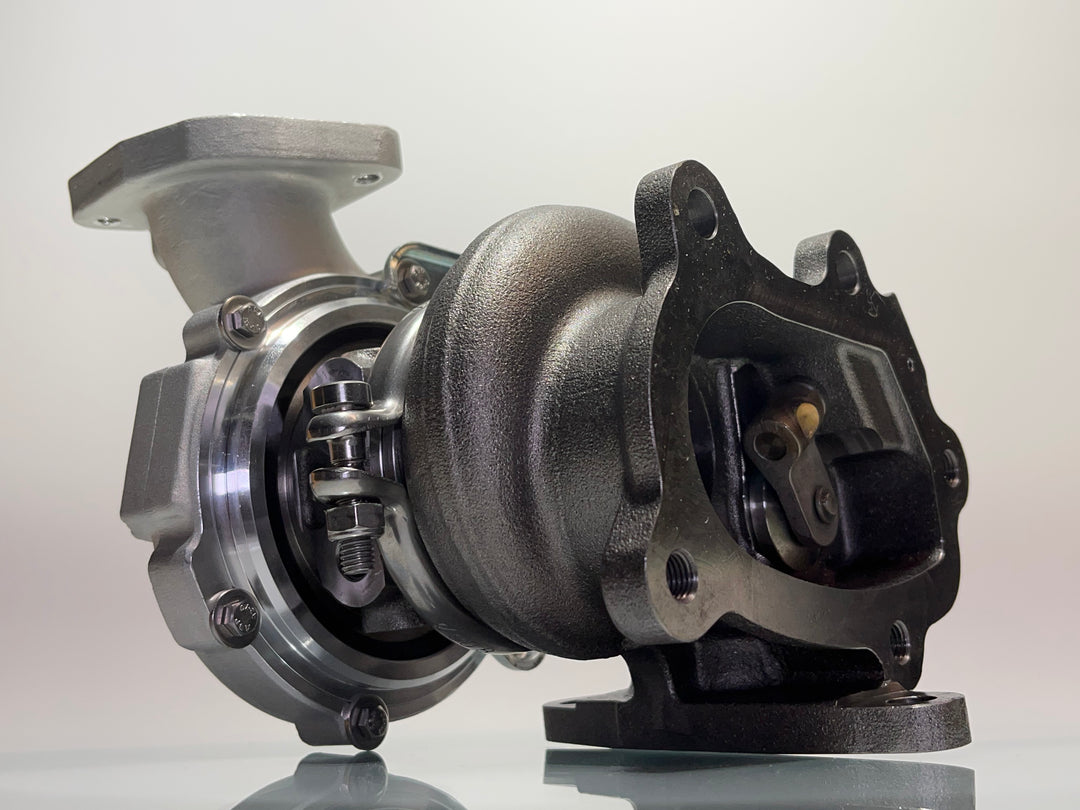

2008-2014 Subaru WRX 20G turbo upgrade (400hp-500hp)

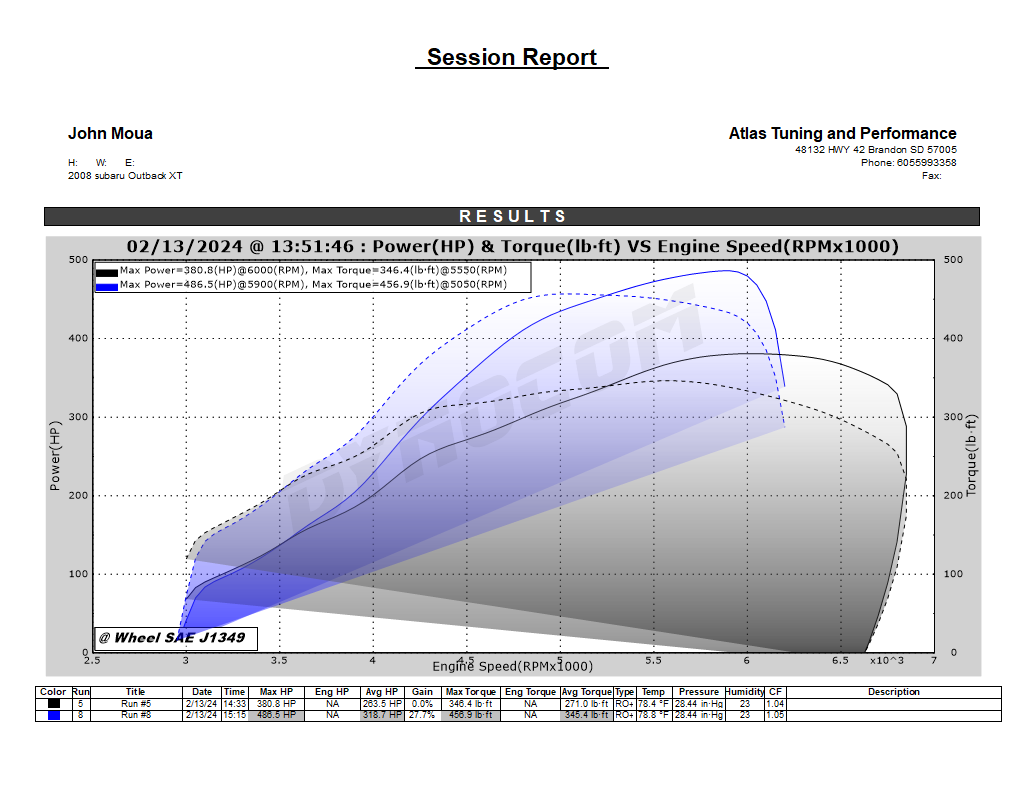

The Billet 20g is not good for stock fueling. Most customers target 450-500 awhp with this turbocharger! Full boost is around 3400 rpm with a streetable power band, without the drastic boost fall off in the upper rpms that the vf40-46-52 turbochargers have! Our Billet 20g out spools the competition 20g units because of our high flow TD05 turbine wheel. The TD05HF turbine out performs a standard TD05H wheel by 100 hp with no sacrifice on response! The internal wastegate on the 20g is set at 15 psi crack pressure and is easily adjusted on the car. Turbine inlet flange is also port matched to the gasket for increased flow!
- TD05 High flow turbine wheel
- High Performance 360 thrust assembly

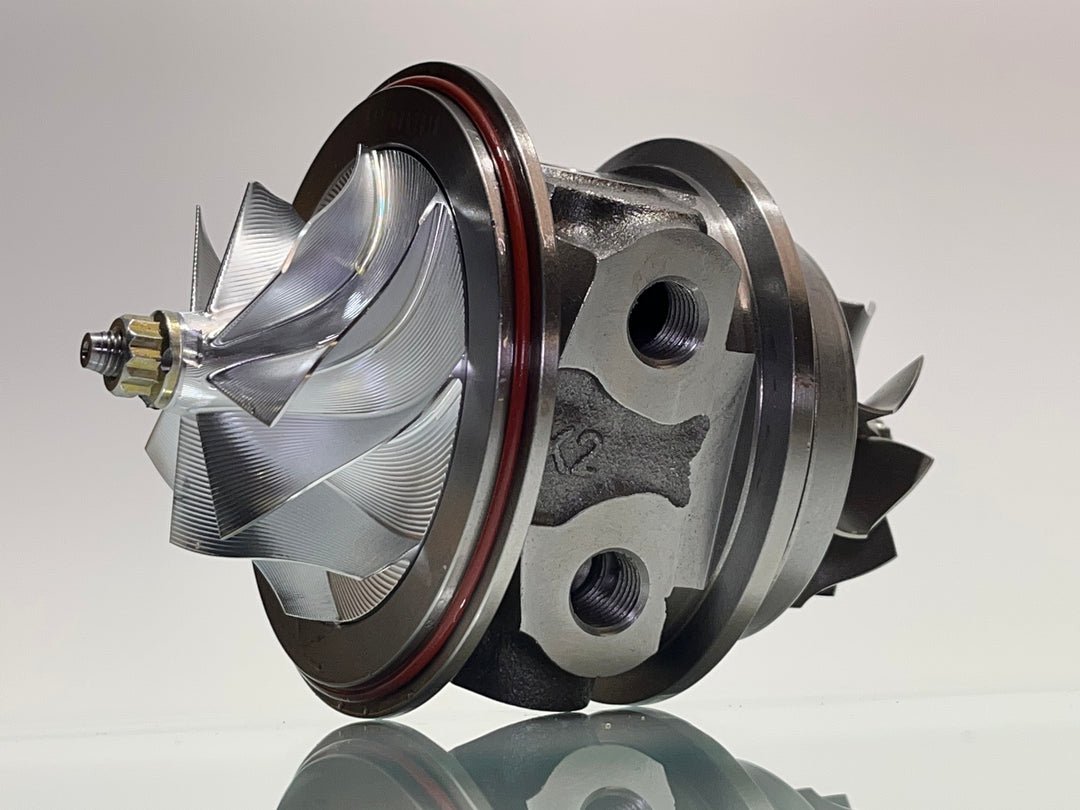

- 20G gen 2 point milled billet compressor wheel
- VSR Balanced

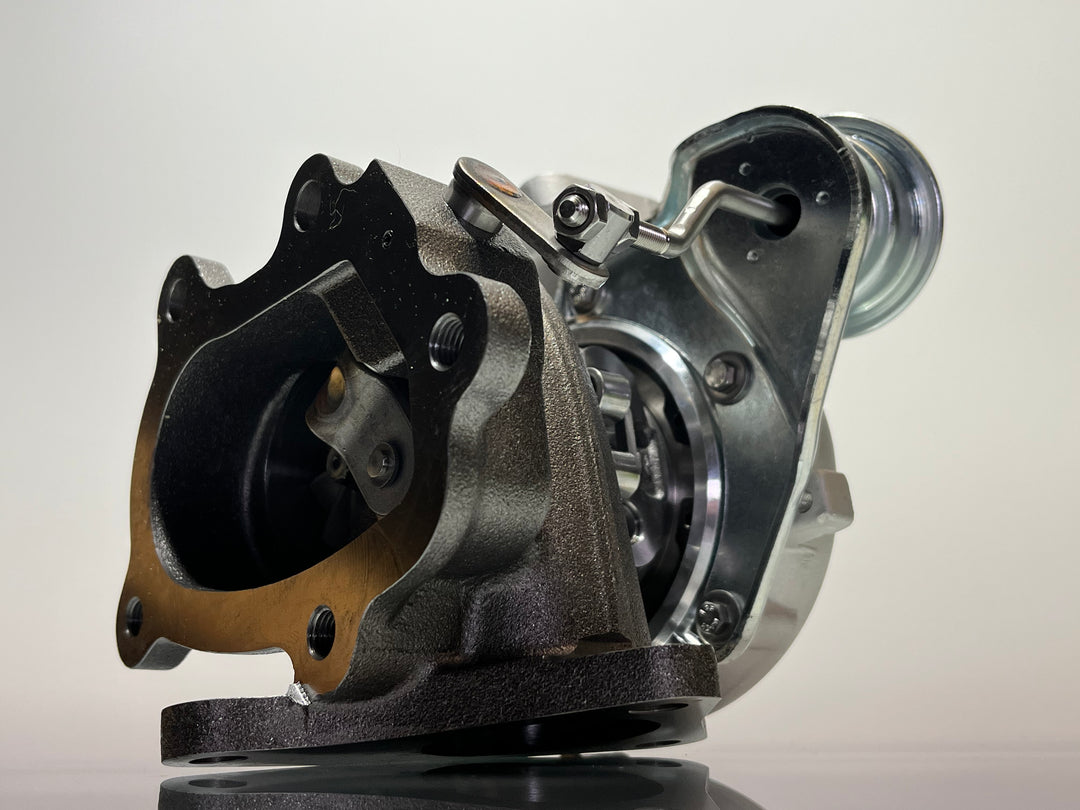

- 8cm turbine housing with 27mm wastegate port
- Port matched turbine inlet

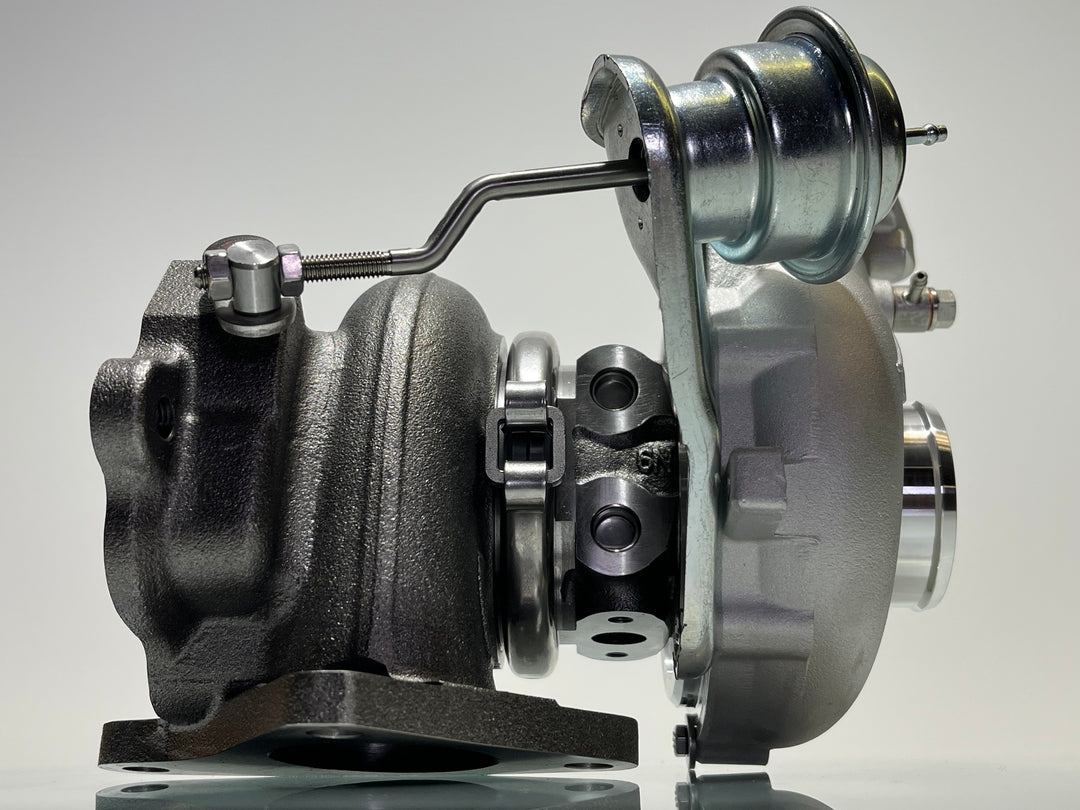

- Adjustable wastegate actuator set at 15 psi crack pressure
- 1/8” hose barbs on actuator and compressor housing (for use of stock, rubber Tee fitting)

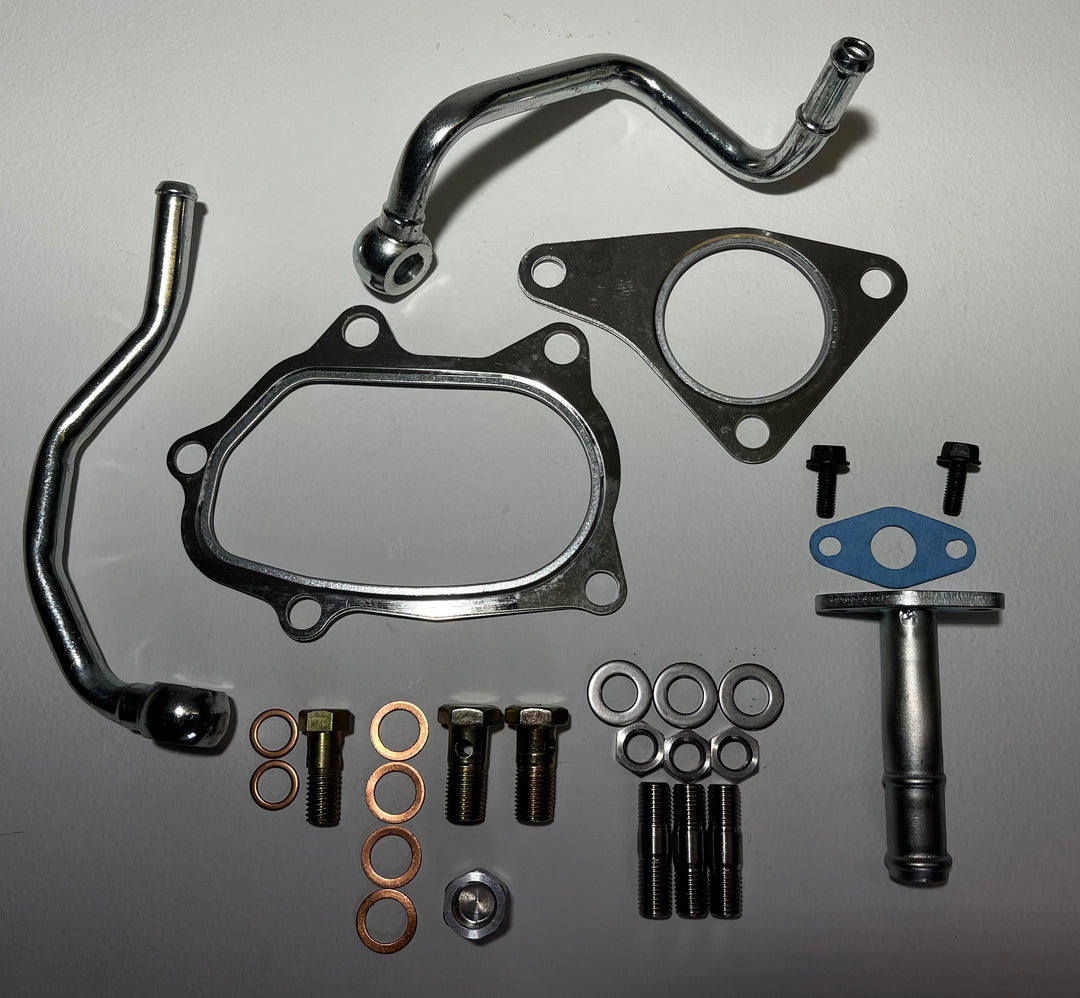

- 5 layer stainless MLS turbine inlet/outlet gasket
- (3) m10 1.25 studs
- (4) 12mm copper sealing washers
- (2) 10mm copper sealing washers
- Water lines with banjo bolts
- Oil Drain tube with bolts
*Cars equipped with external gates please select the external wastegate variant when ordering. We will delete the wastegate actuator and permanently fix the internal flap free of charge.*
FREE CONTINENTAL USA SHIPPING -
Orders may qualify for free shipping based on your order meeting set criteria. These criteria may include, but are not limited to, order total, order weight, domestic vs. international, delivery location, box count, etc. Unless we have told you otherwise, free shipping is only applicable for addresses within continental United States (lower 48 state).
Some products may also display as eligible for free shipping based on your location and what delivery services are available to your location.
Products can also be excluded from free shipping and will say as such when that is the case. These are usually due to product weight and or size. Any displayed Free Shipping promotions for a product are limited to the continental United States (lower 48 state) or digital delivery.
You can see if any part of your order qualifies for free shipping during checkout.
INTERNATIONAL SHIPPING -
We offer international shipping for those outside of the USA but due to low international volume we do not collect taxes or duties. This does NOT cost you any more as it is the same rate you would pay through BNRturbos.com if we collected. We simply do not have the tax accounts all over the world to report and pay the taxes and do not do sufficient volume to require collection. You will be responsible to pay the taxes and duties upon delivery. The shipping label will have the correct order total so that it can be insured properly, your country will probably charge you duties and shipping based on that transaction amount.
OVERNIGHT SHIPPING AND SHIPPING CHANGES
Overnight, Next-Day Air, or Express shipping means only that your order will ship using the selected service. It is not guaranteed that your order will ship the day it is placed. If urgent, you should call or email to verify how long it will take to fulfill. Many items require customization for the order and it may take 1-7 days depending on product. Complete custom builds that require your core can take 4-8 weeks after receiving your core.
Weekend and holiday services are not guaranteed. Saturday delivery service options will not show at check out the Friday before. Contact BNR for expedited build and shipping options prior to placing your order.
BNR works diligently to ship each order as fast as possible. For your benefit, we often elects to upgrade your shipping service to an equal or faster method. UPS and USPS pick up packages Monday-Friday. Please note, we are only open Monday-Friday so orders placed for express shipping after hours or on weekends we will not see until the next business day. If you have emergency needs please call to ensure timeliness.
DAMAGED PRODUCT PROCEDURES
All items purchased from BNRturbos.com are made pursuant to a shipment contract. This means that the risk of loss and title for such items pass to you upon our delivery to the carrier. We ship all items WITH shipping insurance and are not responsible for damages caused during shipping. DO NOT file a claim with the shipping company if your item was damaged during transit. If you file a claim through the shipping company, it will be denied. Please contact us WITHIN 24 HOURS so we can initiate the correct compensation procedures through the shipping company. You may be asked to send pictures of the parts and packaging for claim purposes. PLEASE INSPECT YOUR ITEM BEFORE SIGNING FOR IT, IF YOU DO NOT AND IT IS LATER DISCOVERED THAT THE ITEM IS DAMAGED, YOUR CLAIM WILL BE DENIED! Make the shipper wait if you must, make sure to ALWAYS inspect ANY package you get before the shipper leaves. Any damage not reported within 24 hours cannot be disputed and we will not be able to initiate a claim.
BNR Cancelation and Return Policy
We do not do cancelations or refunds once the order has reached the fulfillment status (meaning it has started the shipping process). Custom products requiring a core can not be canceled once we start working on your core, if canceled prior you must provide a return shipping label to receive your core back. In order to cancel any order the customer must call and speak to a BNR Supercars representative about cancelation and a refund. We apologize for any inconvenience. If you have any question about choosing the correct turbocharger for your application, please call to consult!
BNR Warranty Policy
BNR Supercars LLC has a limited (12 month warranty from invoice date) with every turbocharger we build. BNR Supercars guarantees its products will be free of defects in workmanship and materials upon delivery. The warranty only covers turbocharger parts, if defective, and does not cover damage due to abuse, misuse, or neglect. BNR Supercars does not cover products if not utilized in accordance with BNR Supercars intended purpose nor incorrect installation of said products. BNR Supercars LLC is not responsible for labor for removal of turbocharger or the postage of turbocharger(s) to or from the purchaser. The warranty does not cover:
- Oil Contamination
- Oil Starvation
- Over-speeding
- Foreign object failure
Oil starvation (non-warranty)
When we pull apart turbocharger and thrust/shaft are discolored showing signs of friction or metal swap. That is an indication of oil starvation. Here are a few pics of turbochargers that didn’t get enough oil volume and died a miserable death.
Oil Contamination (non-warranty)
Signs of oil contamination are present in the journal bearings and thrust bearing assembly. When contamination occurs, target boosts will be possibly be lower and the turbocharger could push oil past the turbine seal causing smoke out the tail pipe. If your lucky just a minor overhaul will be needed. I will suggest you to do a leak down to your engine for possible ring land failure and I will tell you to install an inline oil filter to filter the oil before it gets to the turbocharger. Doesn’t take much trash in the oil to damage bearing bronze to the point the turbocharger needs servicing.
Over-speeding (non-warranty)
Over-speeding looks similar to oil starvation. The journal bearings usually aren’t effected by over-speeding. The first sign of over-speeding is the thrust bearing burns up like its starved for oil. It will eventually take out the journal bearings and the rest of the CHRA (center housing rotating assembly) if the problem isn’t caught in time. You will start to have excessive in and out movement! Over-speeding is typically caused by:
- Blown intercooler coupler
- Bad blow off/bypass valve (not enough spring tension)
- Improperly set up sequential system (if sequential twin turbo-rx7/supra)
- Improperly sized turbocharger (too small for engine)
Foreign object failure (non-warranty)
Foreign object failure is something like a nut or bolt that’s loose in your intake system. Happens quite often. Original turbo that came off was missing a shaft nut. You better find it because eventually it will be consumed by the new turbocharger! The exhaust side of the turbocharger can also be affected. Broken apex seals or broken valves or even welding slag from custom turbo manifolds can cause foreign object damage! You buy a manifold, you better check it for loose welding slag!
If you happen to have issues with your turbocharger (smoking, grinding ect), we have to disassemble to see the cause of premature turbocharger failure before we jump to any conclusions. From there we can determine if there is a problem with the turbocharger or if an internal problem exists with your engine.
Thank you and we appreciate your business!
If you need to file a claim please do so here -
Warranty Claim Form
SHIPPING INSTRUCTIONS - Please remove oil and water lines from the turbocharger(s) to reduce damages during shipment. When boxing, DO NOT using packing pea nuts, shredded paper, or bubble wrap, the weight and sharp ends of the turbocharger pops bubbles and breaks pea nuts causing the turbo to shift around and break through the box before it gets to us. Use newspaper and pack the turbo tightly. A double wall box is best suited for the weight! The flat rate boxes, are NOT rated for the weight of a turbocharger. If the turbocharger gets damaged (broken studs, bent actuators ect.) there will be extra charges for replacements/labor!
